Rajtilak Metal is a Mumbai-based manufacturer and exporter of industrial pipe fittings, forged flanges, forgings and high tensile fasteners. For more than three decades we have supplied EPC contractors, refineries, fabricators and stockists with components that are dimensionally correct, fully traceable and delivered with complete documentation.
ISO 9001 certified quality system, EIL and IBR approved products, and supply experience on ADNOC approved projects in the Middle East.
See how our flanges and pipe fittings move from certified raw material to forged blanks, CNC machining, marking and final inspection before they are packed for export.
A flange joins pipes, valves, pumps and equipment through a bolted, gasketed connection that can be opened for inspection and maintenance.
Threaded connections suit low-to-medium pressure lines; welded flanges and fittings are specified for high-pressure and cyclic service.
Fitting material normally matches the pipe specification, so heat numbers and markings follow the same ASTM grade.
Three fitting families cover almost every process piping requirement. Choose by connection type, pressure class and material grade — our engineers verify every enquiry against the governing standard before quotation.
Small-bore fittings forged to ASME B16.11 for instrumentation, drains, vents and high-pressure utility lines.

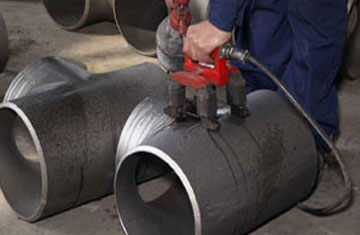

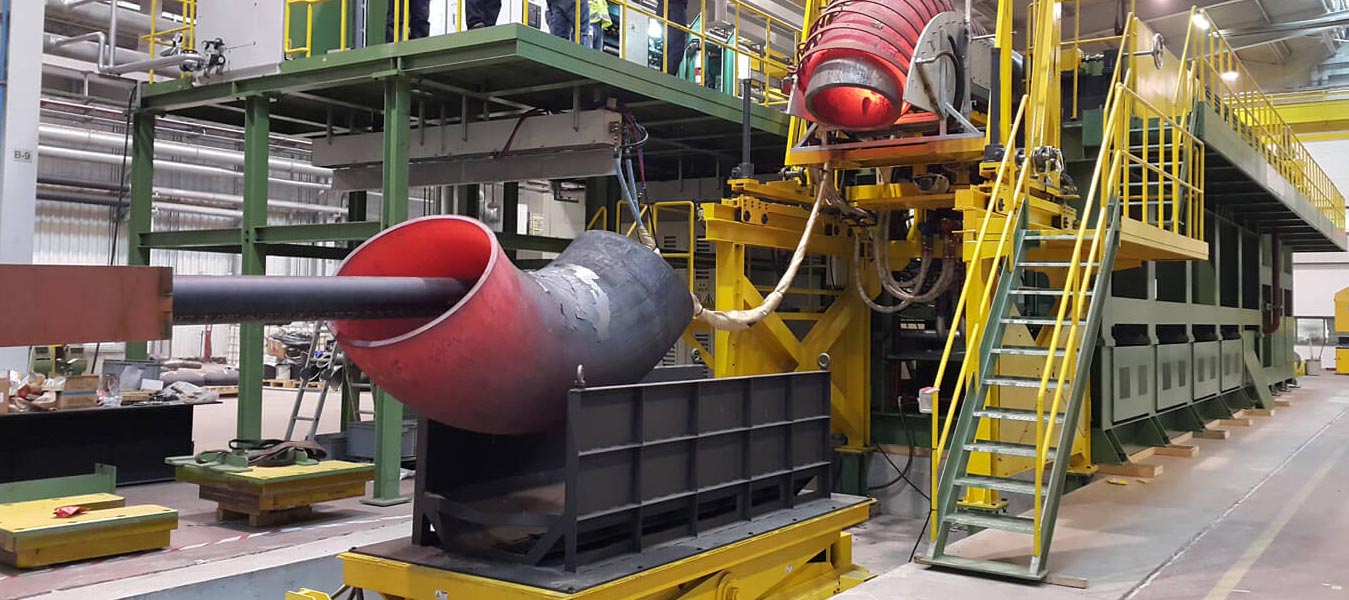

Seamless and welded elbows, tees, reducers, caps and stub ends for corrosion-resistant and high-yield pipelines.
Chrome-moly and carbon steel fittings for high-temperature steam, boiler and refinery heater service.

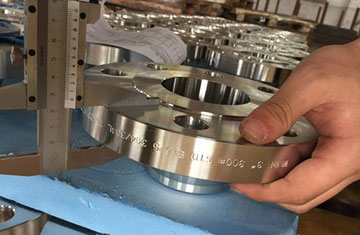

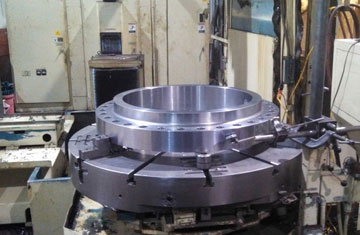

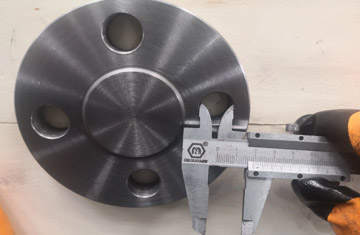

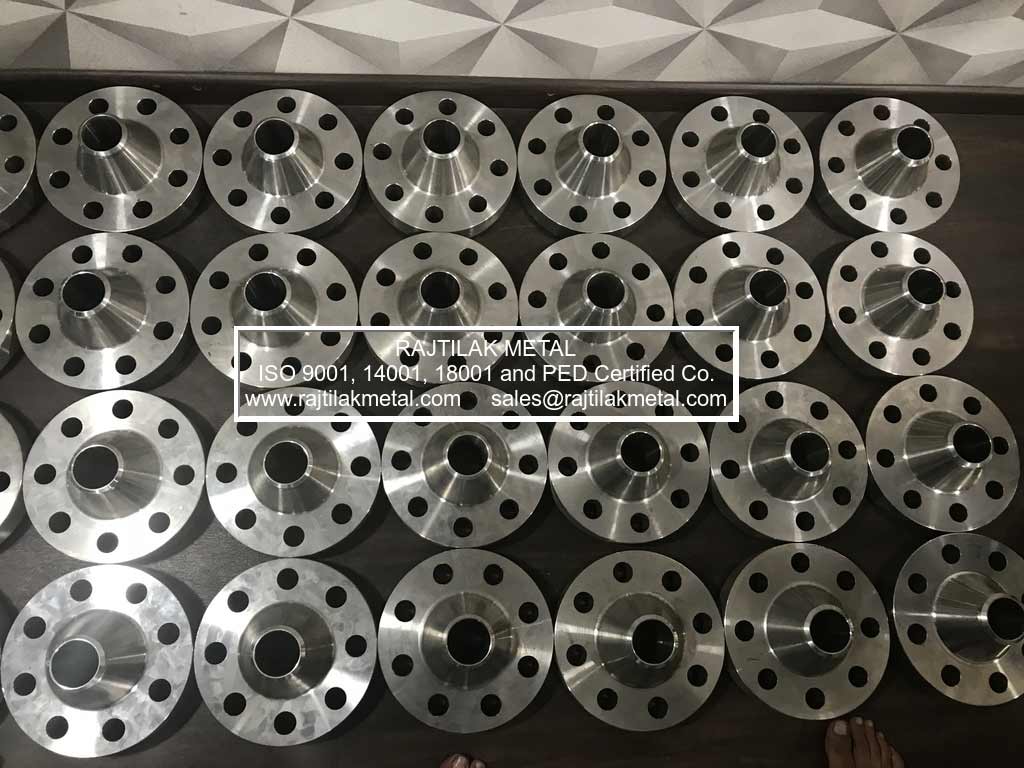

Every flange we produce follows ASME dimensional standards and ASTM material specifications. We forge weld neck, slip on, blind, socket weld, threaded and lap joint flanges with raised face (RF), flat face (FF) or ring type joint (RTJ) facings, in smooth or serrated finish to match your gasket.
Threaded flanges are recommended for low-to-medium pressure lines, while weld neck and socket weld flanges are specified where pressure, temperature fluctuation or vibration is significant. On request, flanges can be internally coated or lined for aggressive media.
From sub-zero LNG lines to high-temperature steam headers, select the grade that matches your design temperature and corrosion allowance. Schedule 40 and Schedule 80 matching bores are available.
Chrome-moly grades for elevated temperature and hydrogen service in refineries and power plants.
Low-carbon austenitic grades for chemical, pharmaceutical, food and desalination piping.
Impact-tested carbon steel and lightweight titanium for cryogenic and seawater applications.
A quick reference to the standards, size ranges and pressure ratings we manufacture to, so procurement teams can match line items to datasheets before sending an RFQ.
| Product | Standard | Size Range | Pressure Rating | Typical Materials |
|---|---|---|---|---|
| Pipe Flanges | ASME B16.5 / B16.47 | 1/2″ – 24″ (B16.5), 26″ – 60″ (B16.47) | Class 150 – 2500 | A105, A182 F304L/F316L, F11, F22, A350 LF2 |
| European Flanges | EN 1092-1 / DIN | DN 10 – DN 2000 | PN 6 – PN 400 | P235GH, P250GH, 1.4404, 1.4301 |
| BS 10 Flanges | BS 10 Table D, E, F, H | 1/2″ – 24″ | Table D to Table H | Carbon steel, stainless steel |
| Buttweld Fittings | ASME B16.9 / MSS SP-43 | 1/2″ – 48″ | SCH 5S – XXS | A234 WPB, A403 WP304L/316L, WP11, WP22, WPHY |
| Socket Weld Fittings | ASME B16.11 / MSS SP-97 | 1/8″ – 4″ | Class 3000, 6000, 9000 | A105, A182 F304/F316, A350 LF2 |
| Threaded Fittings | ASME B16.11 (NPT / BSP) | 1/8″ – 4″ | Class 2000, 3000, 6000 | Carbon, stainless, alloy steel |
| Bolts & Nuts | ASTM A193 / A194 / ISO 898 | M20 – M72, 3/4″ – 3″ UNC | Grade 8.8, 10.9, 12.9 / B7, B6, B8, 2H | Alloy, stainless, duplex, nickel alloys |

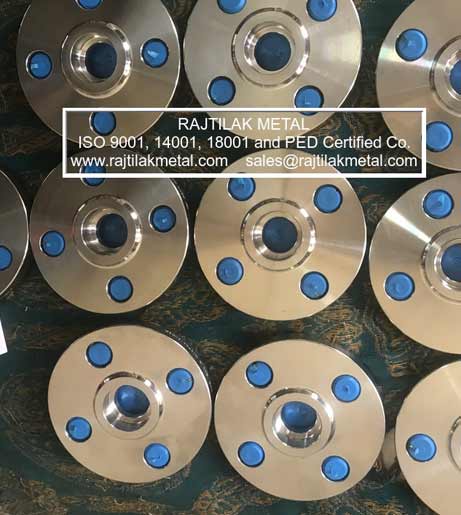

Rajtilak Metal is one of India's longest-established ISO certified manufacturers of pipe bends, couplings, end caps, elbows, stub ends, reducers, tees, olets and gaskets. Our EIL and IBR approved forgings are installed in oil, gas, water, acid and petrochemical plants that demand verified material quality.

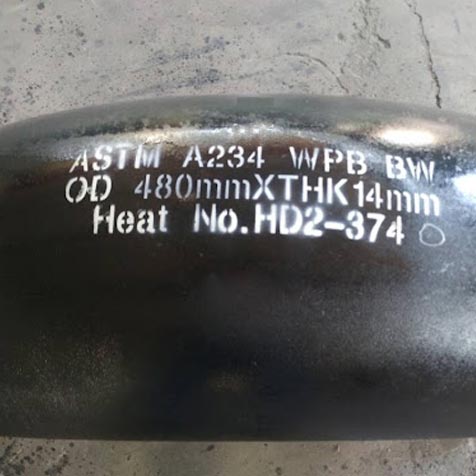

Each fitting carries the manufacturer's mark, material grade, size, schedule or class and the original heat number. That marking links directly to the EN 10204 3.1 certificate, giving inspectors full traceability from the steel mill to the installed spool.
Prime mill material from India, South Korea and Japan.

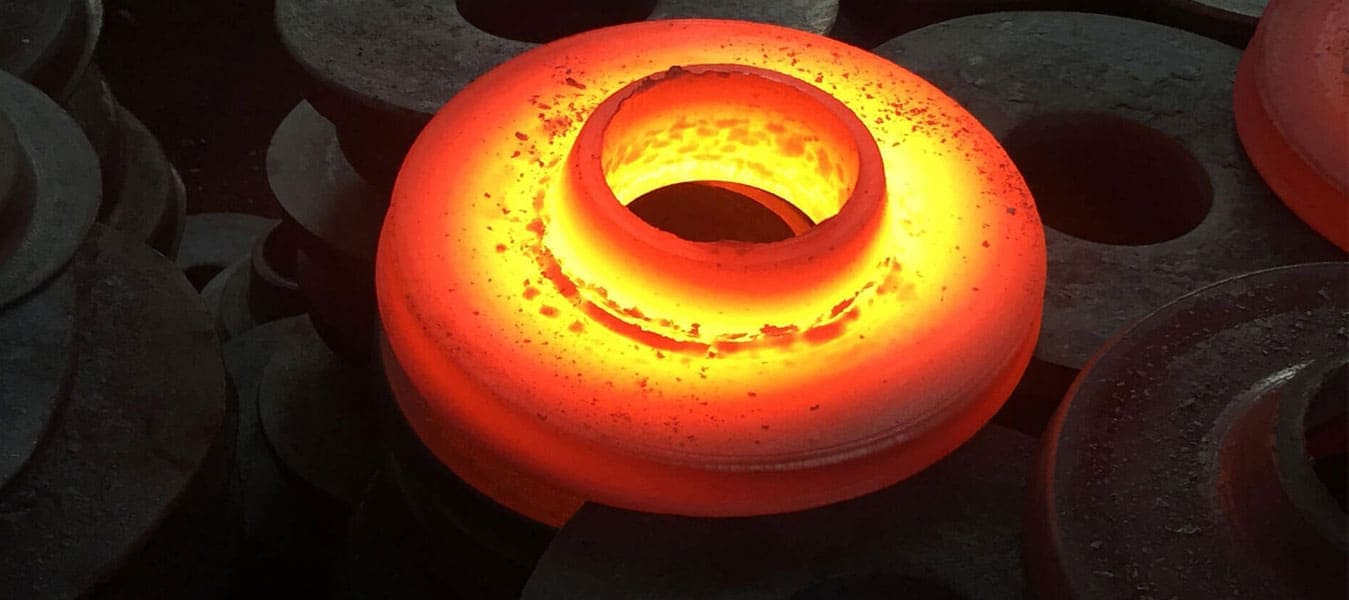

Controlled forging, normalising or solution annealing.

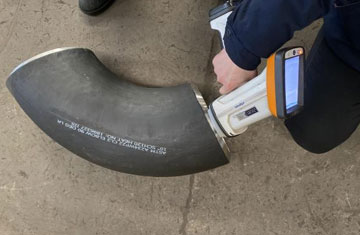

Chemical, mechanical, dimensional and visual checks.
Heat-number stamping with EN 10204 3.1 MTC.
Manufacturer of stainless steel fasteners, buttweld pipe fittings, closed die and open die forgings. Our team reviews datasheets, NACE MR0175 requirements and project specifications before production begins.
Industrial fittings delivered for onshore and offshore platforms, wind power plants, oil & gas, refineries and petrochemical complexes — supported by export documentation specialists.

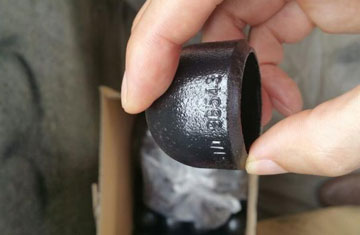

A complete range of ANSI / ASME bends, reducers, T-, X- and Y-pieces, caps, heads, collars and branch saddles, each inspected and certified before packing in seaworthy wooden cases.
Fittings are available with flat face, raised face, ring type joint, tongue and groove facings in smooth or serrated finish. Pricing depends on material grade, size and quantity, and our customer base spans India, the Middle East — Qatar, Oman, Turkey, UAE, Saudi Arabia and Egypt — and South-East Asia, including the Philippines, Indonesia and Malaysia.
As an ISO certified manufacturer of seamless tees and reducers in stainless and carbon steel, we also produce special-purpose flanges and publish dimension and weight data to simplify your engineering checks.
Engineered flanges for line isolation, flow measurement and large-bore connections.
Reference charts covering bolt circles, thickness, bore and weight for common standards.
Flanges are easy to assemble with moderate bolt torque, remove the need for adapters and allow pipes to be dismantled for cleaning, inspection or modification. With correct gasket selection and even bolt-load distribution, they resist loosening under shock, vibration, high pressure and temperature fluctuation — which is why they are trusted for toxic gases and flammable or explosive liquids.
Flanged joints are heavier and larger than welded joints, and exotic alloys increase cost. For long runs with no maintenance access, buttweld fittings may be more economical. Our engineers can recommend the most cost-effective combination of flanges and welded fittings for your line class.

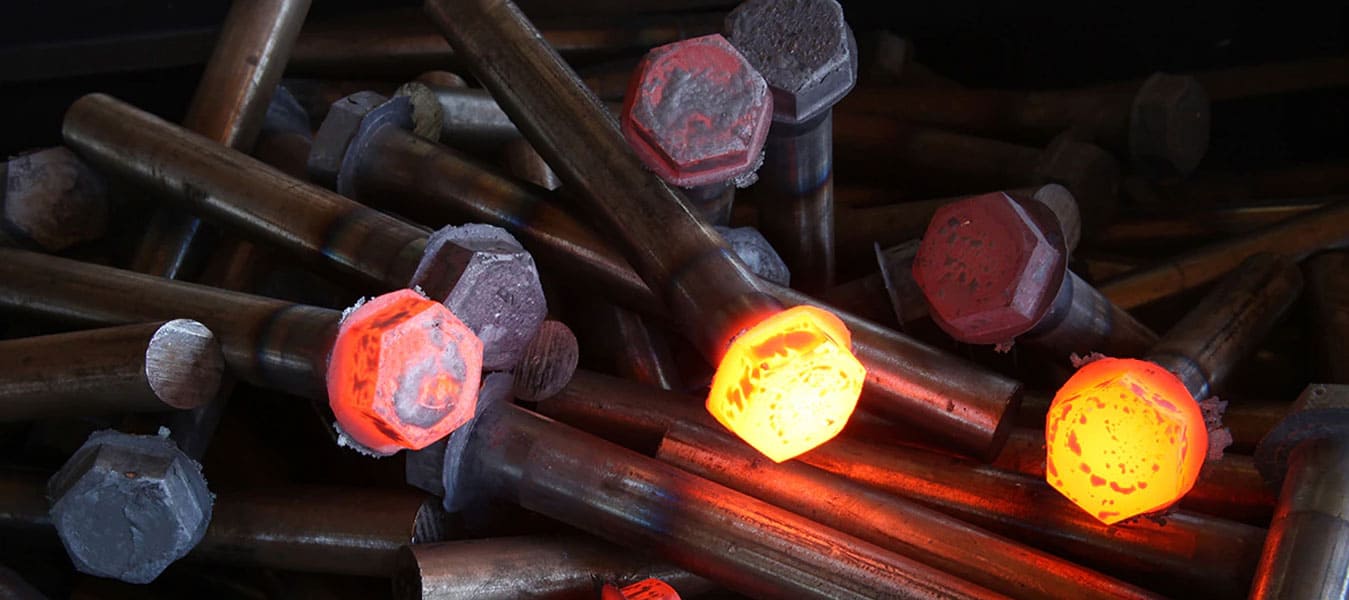

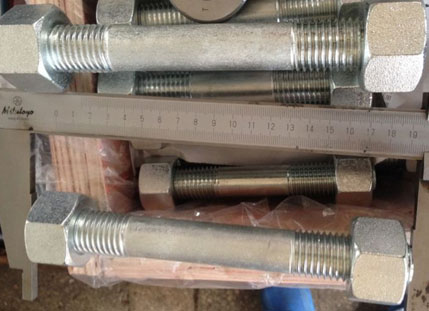

We manufacture high tensile bolts and nuts from M20 to M72 and 3/4″ to 3″ UNC in property classes 8.8, 10.9 and 12.9, with ready stock in SS 304, SS 316, SS 316L and 904L.
Premier-quality threaded forged elbows, forged flanges and fittings with published dimensions, weight charts and pressure ratings — supplied to projects on four continents.
